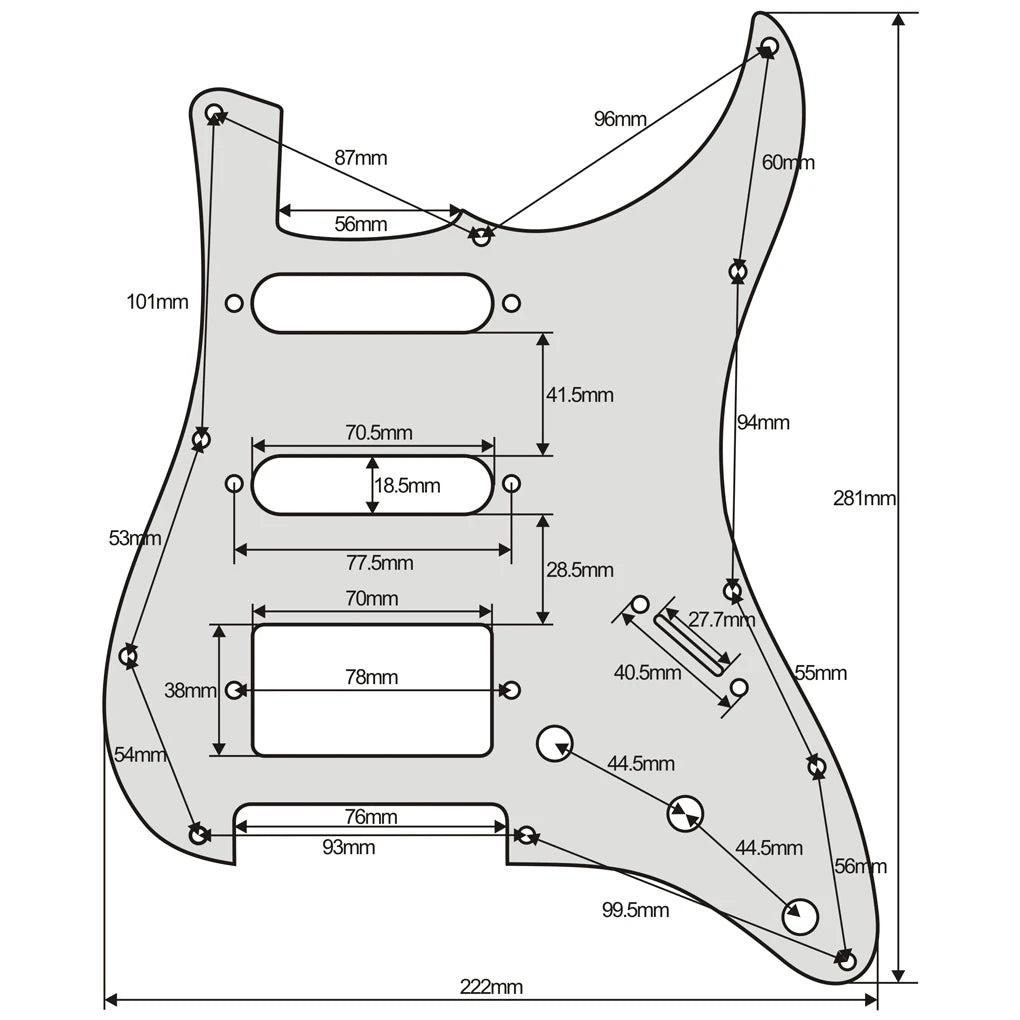

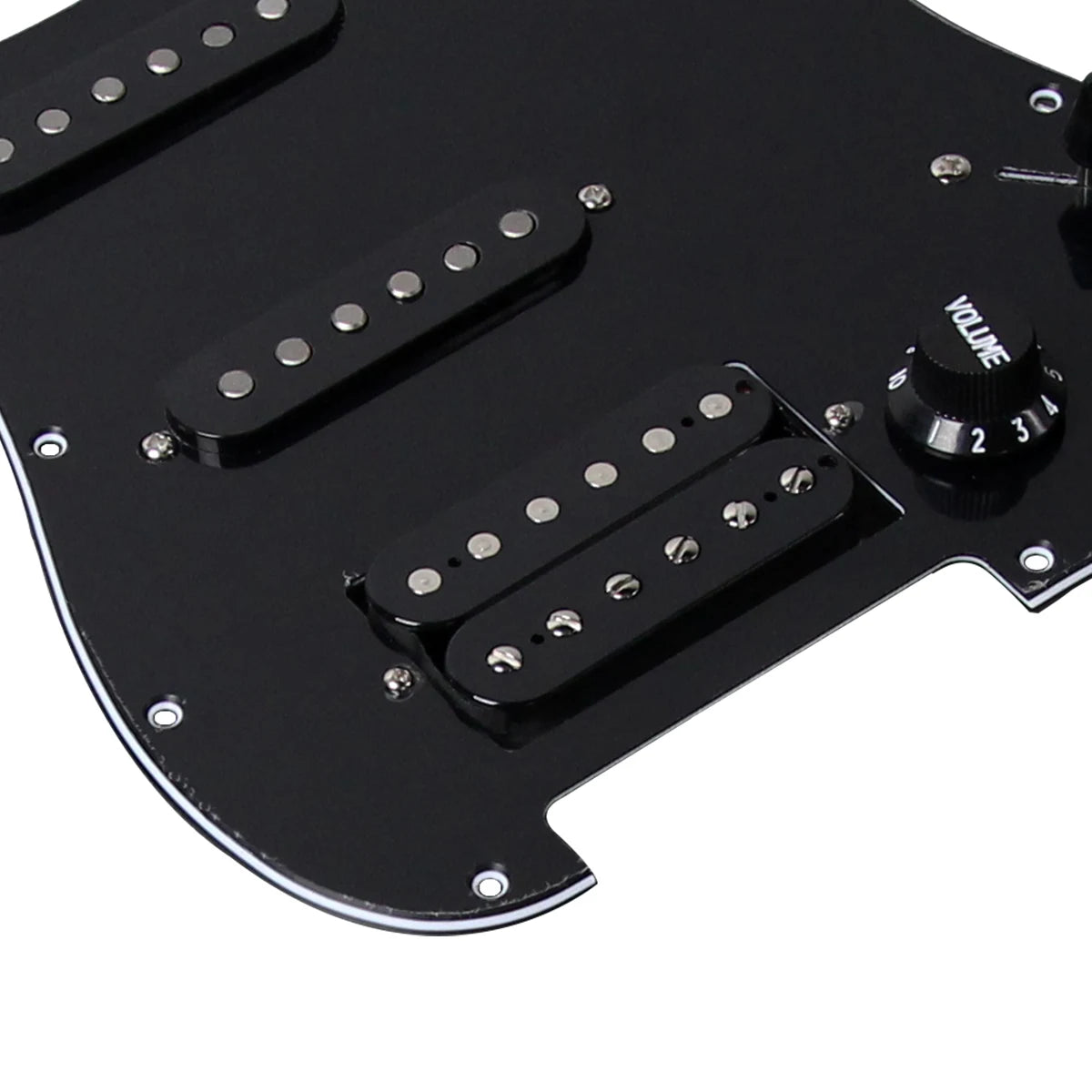

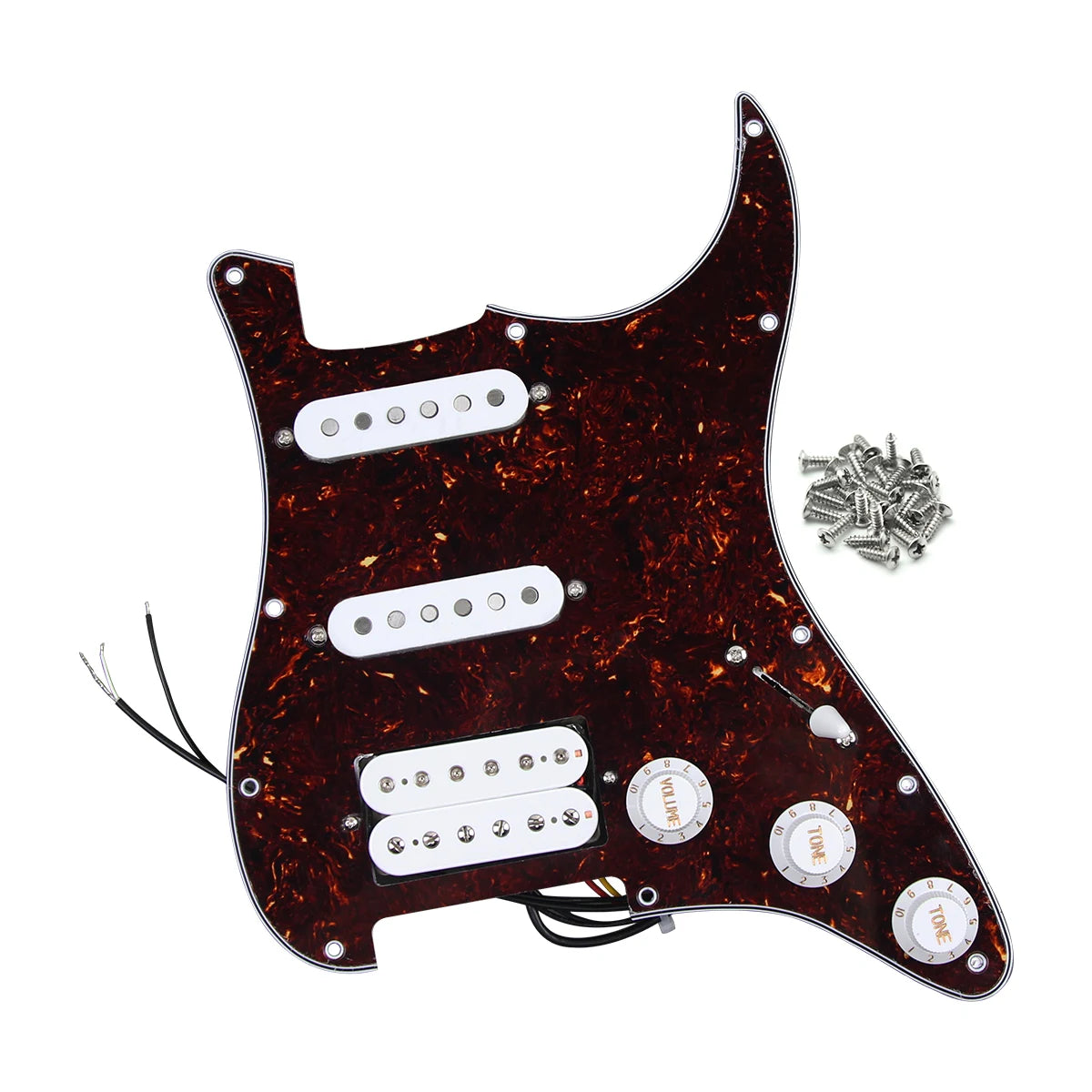

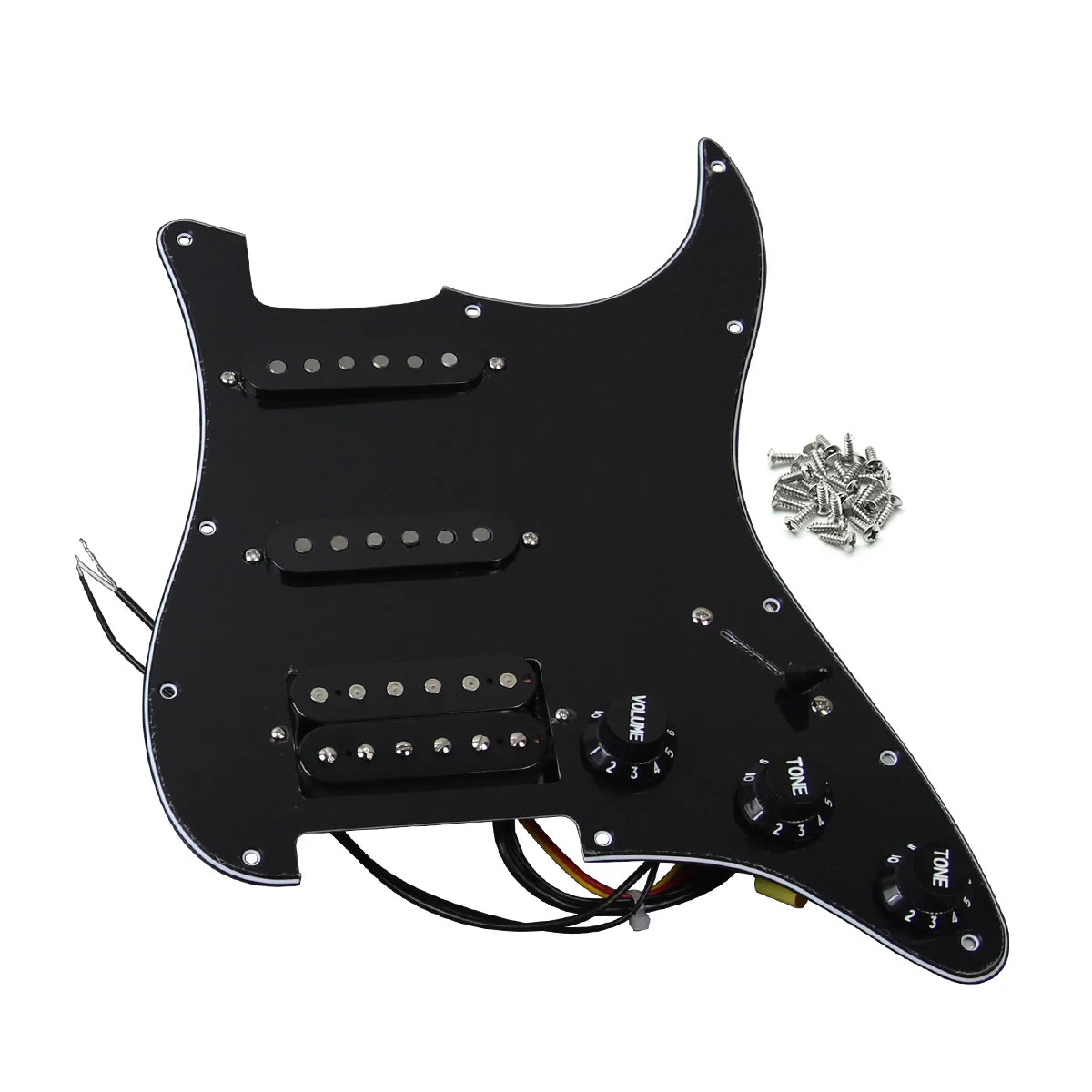

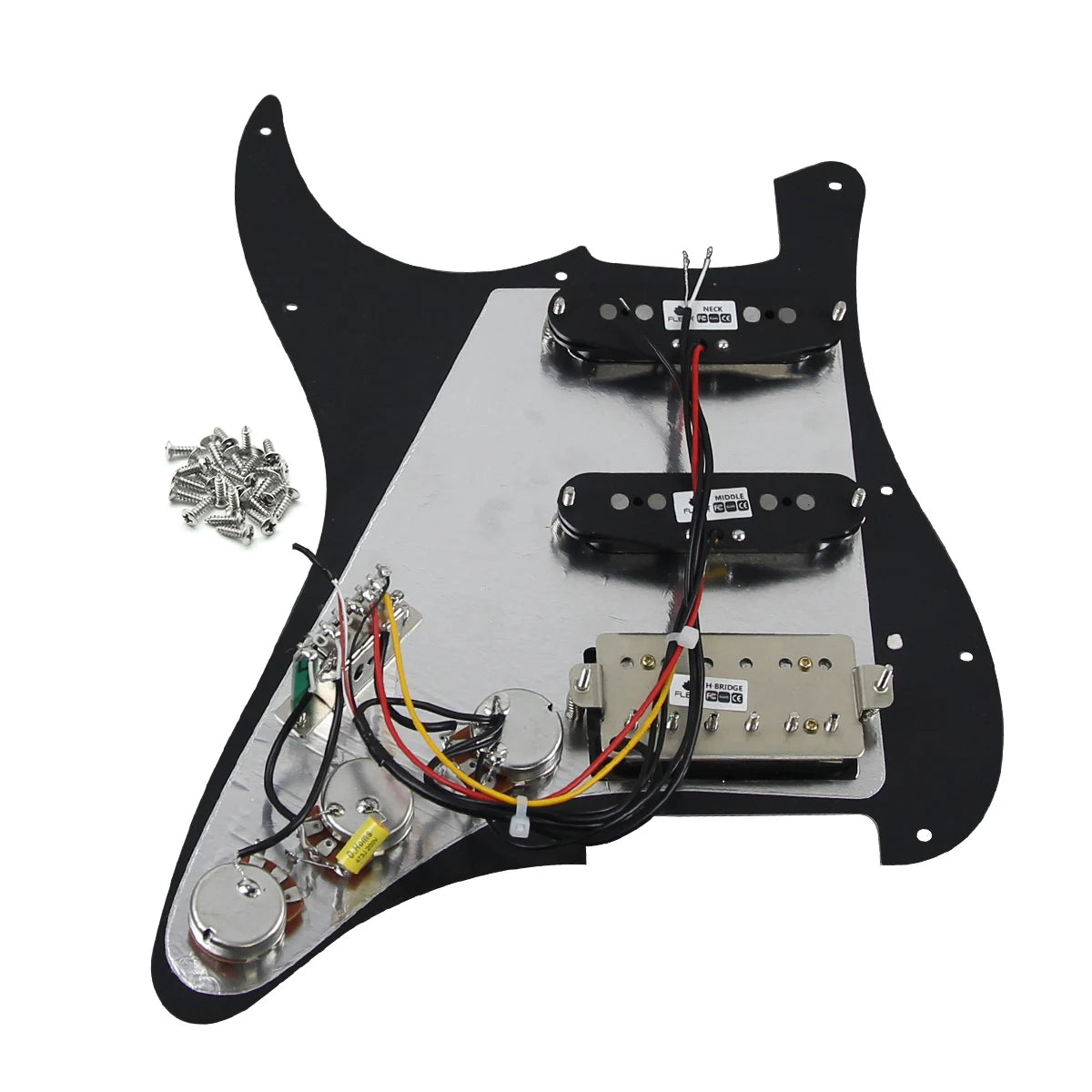

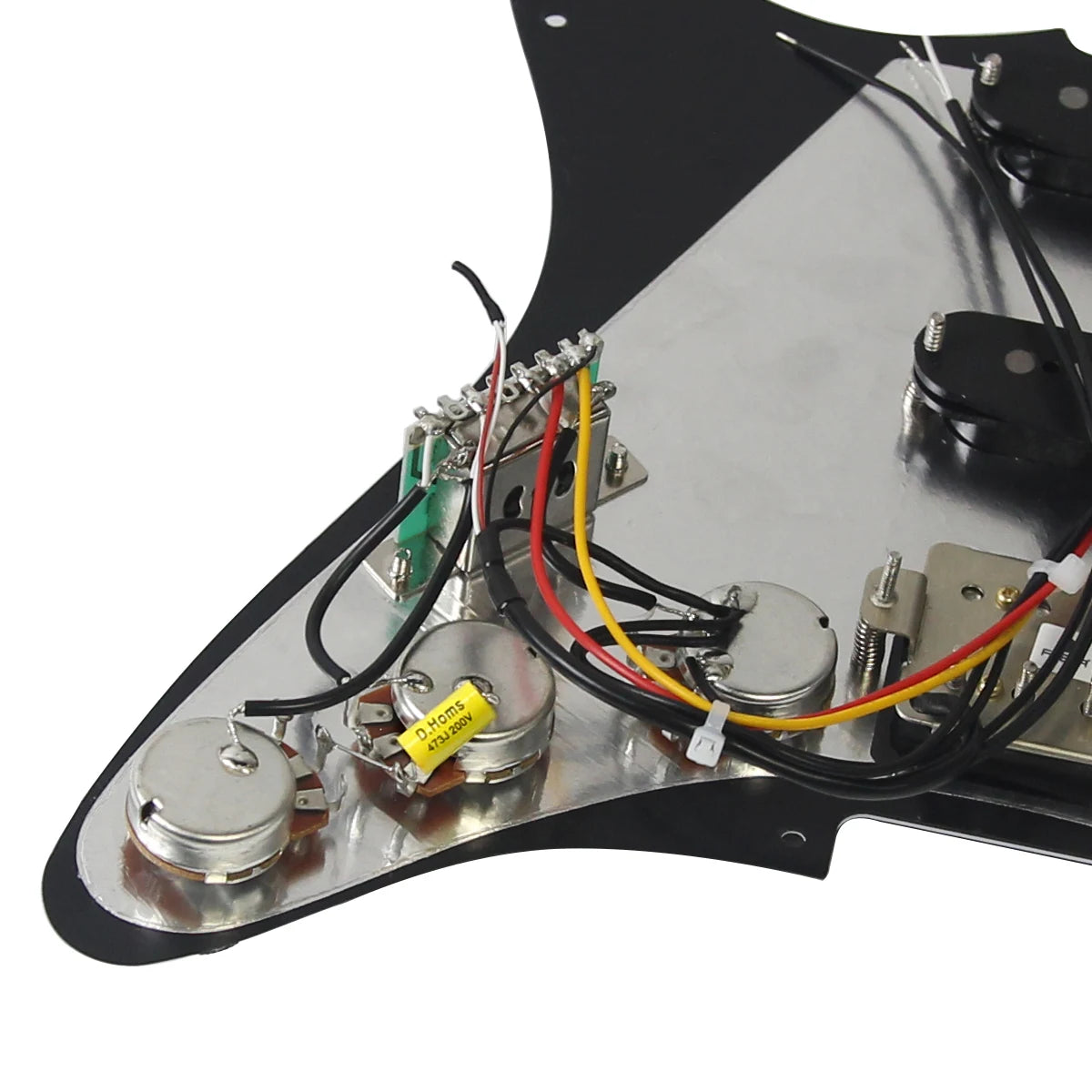

This Fleor prewired pickguard comes ready to fit standard U.S./Mexican‑style ST guitars, featuring an SSH configuration with two Alnico 5 single-coil pickups and one Alnico 5 humbucker capable of delivering a wide tonal spectrum. Crafted from 3-ply PVC material and outfitted with 11 mounting holes, the pickguard includes two protective films to guard the surface during shipping and installation. The middle pickup is reverse-wound/reverse-polarity (RWRP) to provide hum cancellation when paired with the neck pickup. Tone is balanced through carefully matched coil resistances—5 KΩ to 6 KΩ for the single coils and approximately 14 KΩ for the humbucker—and pole spacing of 50 mm for the neck and middle, and 52 mm for the bridge. The electronics are fully assembled with two tone controls and one volume control using A500 kΩ pots for tone, a B500 kΩ pot for volume, a 5-way selector switch, and a 473J capacitor to shape the signal path. The pickguard also features extensive shielding on the back and arrives with all necessary installation screws—simply solder your input jack and ground wires, mount the pickguard, and you're set.
